รายละเอียดเพิ่มเติม
คุณสมบัติ
Model
Brand
Gigabyte
Model

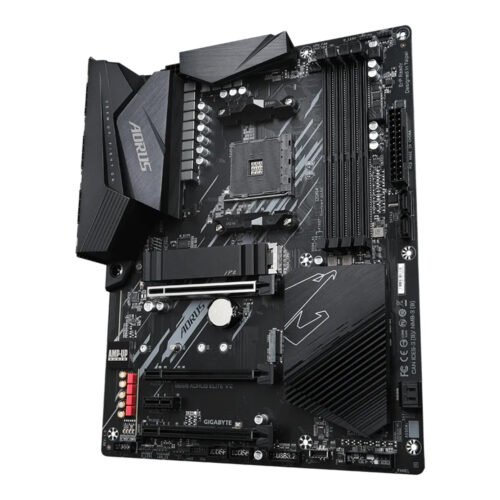

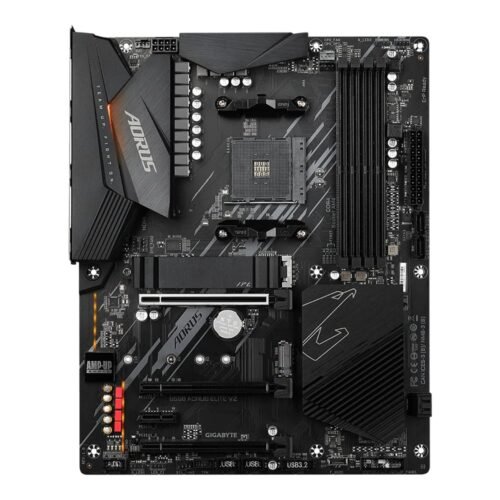

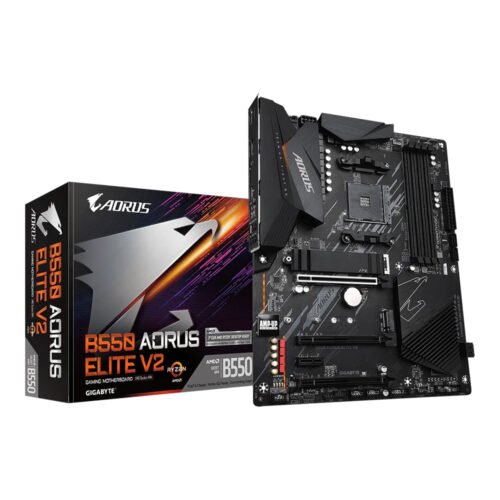

B550 AORUS ELITE V2 (rev. 1.2)
CPU
Socket
AM4 (3000 Series – Matisse) , AM4 (4000 G-Series – Renoir) , AM4 (4000 Series – Renoir) , AM4 (5000 G-Series – Cezanne) , AM4 (5000 Series – Vermeer)
Wattage
105W
Chipset
B550
Series
Ryzen 3 , Ryzen 5 , Ryzen 7 , Ryzen 9
Memory
Slot
4
Memory Type
DDR4
Max. Capacity
128 GB
Speed
2133 , 2400 , 2666 , 2933 , 3200 , 3200 (OC) , 3400 (OC) , 3466 (OC) , 3600 (OC) , 3733 (OC) , 3866 (OC) , 4000 (OC) , 4133 (OC) , 4266 (OC) , 4400 (OC) , 4600 (OC) , 4733 (OC)
Graphic & Audio
Graphic
CPU with Integrated Graphics Required
—
Integrated Graphics Processor:
• 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz / Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
• 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz / Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
—
Integrated Graphics Processor:
• 1 x DisplayPort, supporting a maximum resolution of 5120×2880@60 Hz / Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.
• 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz / Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Audio
Realtek ALC1200
2/4/5.1/7.1-channel
Storage
SATA 2
– Port
SATA 3
4 Port
RAID
Support for RAID 0, RAID 1, and RAID 10
M.2
2 x M.2 Connector(s)
—
• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
– AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
– AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
• 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
– Supporting SATA and PCIe 3.0 x4/x2 SSDs
Port
—
• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
– AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
– AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
• 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
– Supporting SATA and PCIe 3.0 x4/x2 SSDs
Port
Expansion Slots
Details
1. 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
– AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
– AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
– Supporting PCIe 3.0 x2 mode
3. 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
– Supporting PCIe 3.0 x1 mode
4. 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
– Supporting PCIe 3.0 x1 mode
– AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode
– AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
– Supporting PCIe 3.0 x2 mode
3. 1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:
– Supporting PCIe 3.0 x1 mode
4. 1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:
– Supporting PCIe 3.0 x1 mode
Slot
1 x PCIe 3.0 x1 Slot , 1 x PCIe 4.0 x16 Slot , 2 x PCIe 3.0 x16 Slots
